7.32″ x 6.85″ x 4.54″ Counter Top Frothing Pitcher Rinser/Glass Rinser SS 304
$150.99 – $156.99
Lower Price Form
You can report the price details & where you have seen this product by filling the required information given in this form.
$
Same Day Shipping
Order before 2:00 pm EST (M-F)
Keep your milk steaming container clean and ready for reuse with our Counter Top Frothing Pitcher Rinser. Made of durable stainless steel 304, this rinser features a high-pressure jet sprayer, brushed finish, and is NSF certified.
- Details
- Features
- Specifications
- Replacement Parts
- Reviews (0)
- Installation Instruction
7.32″ x 6.85″ x 4.54″ Counter Top Frothing Pitcher Rinser/Glass Rinser- C334
Upgrade your bar or restaurant setup with the 7.32″ x 6.85″ x 4.54″ Counter Top Frothing Pitcher Rinser/Glass Rinser SS 304. In this modren era, no one has enough time to work in the kitchen. This Glass Rinser will resolve your problem immediately. Perfect for any espresso setup, this rectangular shape rinser is an essential tool for maintaining cleanliness and efficiency in your establishment.
It can be set up near your Kitchen sink. In a pub and bar the bartender can fit it next to their bar dispense accessories like Beer Draft System, Beer Tower, and Espresso Machine.
Recommended rinsing after every use. The activated spray jets rinse it thoroughly. Our Glass/Pitcher Rinser can help to wash your Milk Mug, Baby Bottle, Cup, Kitchen Utensils, and Glass. This Glass Washer has an extremely fast Pressure Spray that will easily clean your Utensils’ waste or Residue. You can use soap with this machine also during washing kitchenware. Handy sanitizing solution. Time and Water saving Pitcher Rinser Machine.
The high-pressure jet sprayer disk rinser efficiently cleans your pitchers using cool water, providing optimal results with a flow rate of 1.9 GPM at 60 PSI. Simply connect the drain and water lines before placing the rinser on your counter, and enjoy a reliable, NSF-certified cleaning solution.
Our all rinsers are NSF certified. Please use PLV that is Pressure Limiting Valve If you connect this one to your Main water supply.

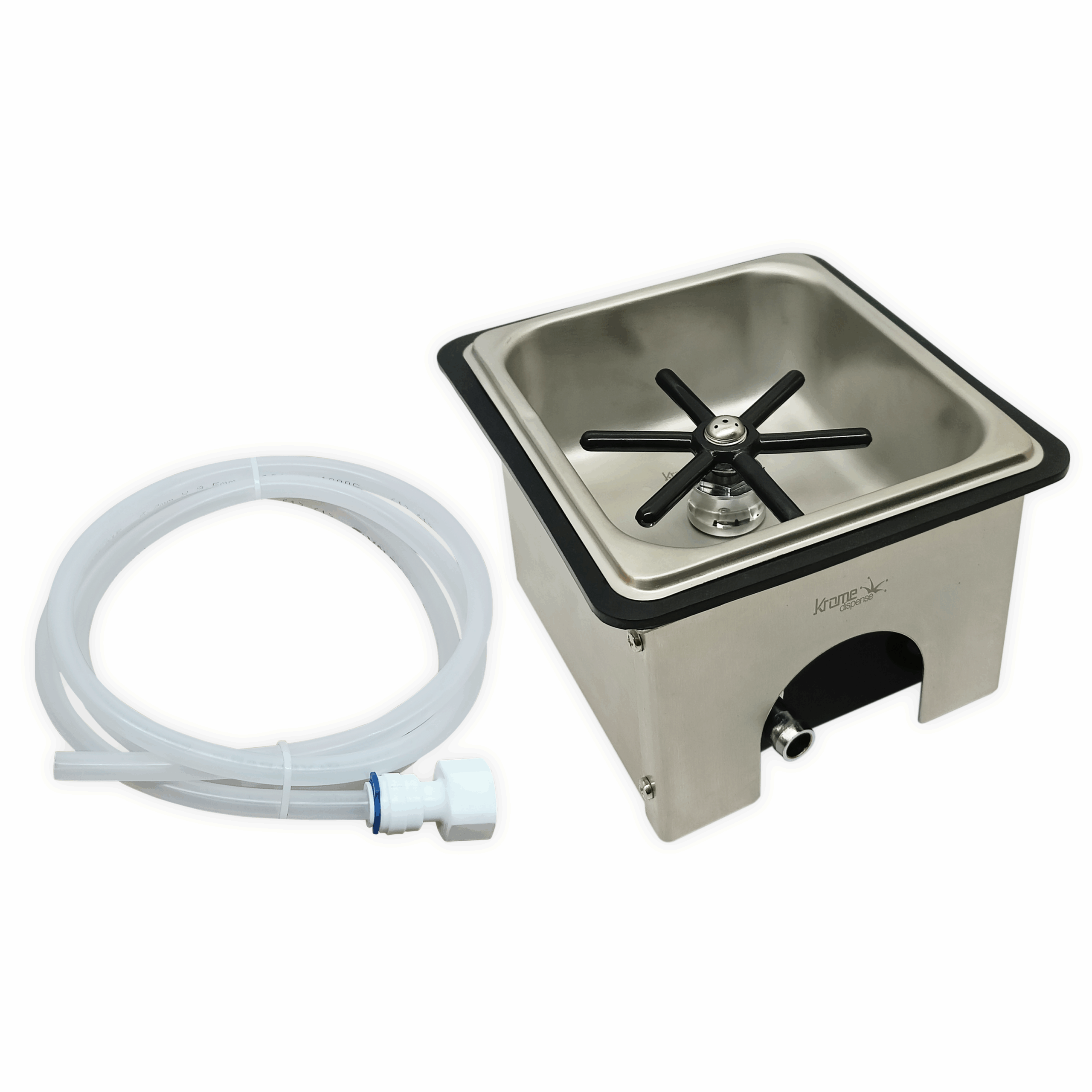

Includes: BSP Connector With 3/8 OD X 5 Feet Hose

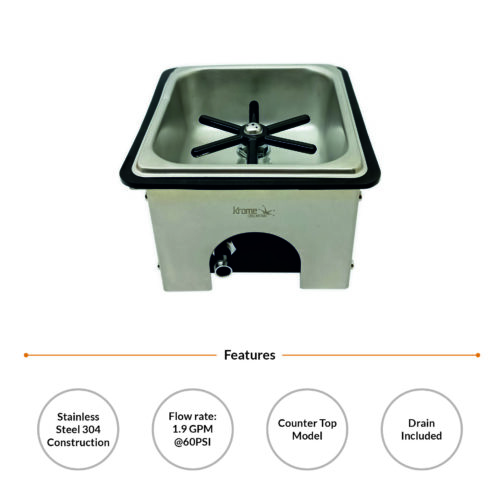

Features
- Efficient Cleaning: Rinse milk steaming containers after each use, keeping them clean and ready for reuse.
- Counter Model: Easy to install; connect the drain and water lines before placing on the counter.
- High-Pressure Jet Sprayer: Stainless steel disk rinser with a powerful spray for thorough cleaning.
- Cool Water Use: Achieve the best results using cool water.
- Flow Rate: 1.9 GPM @ 60 PSI, ensuring efficient cleaning.
We have more options in Glass Rinsers. You can check the Below links.
Downloads
- Due to slight variations in manufacturing design and the varying requirements of bench materials, it is strongly recommended to have the physical Pitcher Rinser?on hand prior to cutting into bench top surfaces. We take no responsibility for installation cut out errors and provides the sizes and dimensions as a layout guide only.
- Line Drawing
- Submittal
- Exploded View
Be the first to review “7.32″ x 6.85″ x 4.54″ Counter Top Frothing Pitcher Rinser/Glass Rinser SS 304”
- Efficient Cleaning: Rinse milk steaming containers after each use, keeping them clean and ready for reuse.
- Counter Model: Easy to install; connect the drain and water lines before placing on the counter.
- High-Pressure Jet Sprayer: Stainless steel disk rinser with a powerful spray for thorough cleaning.
- Cool Water Use: Achieve the best results using cool water.
- Flow Rate: 1.9 GPM @ 60 PSI, ensuring efficient cleaning.

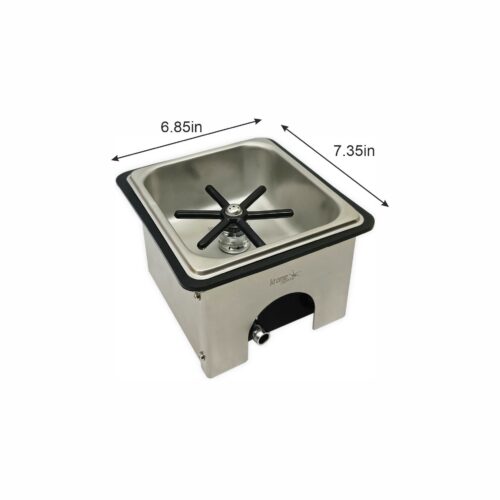

| Material | Stainless Steel 304 |
| Finish | Brushed |
| length | 7.32 Inch |
| Width | 6.85 Inch |
| Height | 4.54 Inch |
| Suitable for | Any espresso |
| Shape | Square |
| Standard Packing | 10 |
| Approval | NSF Certified (Rinser Only) |
Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|
C334.04 | Replacement Plastic Rinser Disk | $16.99 | In Stock | |
| 2 |
|
C334.13 | Pitcher Rinser Spray Assembly-NSF Certified-C334.13 | $53.99 | In Stock | |
| 3 |
|
C060.04 | Stainless Steel Drain Assembly for Sinks | $43.99 | In Stock | |
| 4 |
|
C072 | Plastic Quick Connect 3/8″JG x 5/8″ BSP Female Adapter | $11.99 | In Stock | |
| 5 |
|
C029 | 1/2″ BSP Connector With 3/8″ OD X 5 Feet Hose – PP Pipe Assembly | $19.99 | In Stock | |
| 6 |
|
C334.07 | 7.32″ X 6.85″ Hush Gasket – Small | $6.99 | In Stock |
Installation Instructions
Rinser Water Inlet Installation Instructions
- Always check with local plumbing codes before Installation
- For Use with Regular or cold water supply only, Hot water is not recommended to use with rinser
- Install in-line water regulator set at 15 PSI from the public water supply, no more than 15 Psi
- Install an in-line one-way check valve on water supply this will prevent pressure drop which can cause leakage
- Install in-line shut-off for the rinser system from the water supply, this must be turned off if not in use for extended periods such as off days or night time!
- Install a shut-off for the water supply if the line is not hard plumbed into the system.
