Stainless Steel Camlock Adapter Type F – Male Camlock x 1/2″ Male NPT

Stainless Steel Camlock Adapter Type F – Male Camlock x 1/2″ Male NPT

Camlocks are used to connect pipes and hoses and are also known as cam and groove coupling.These fittings are best used when there is a need for frequent pipe change and maintenance.

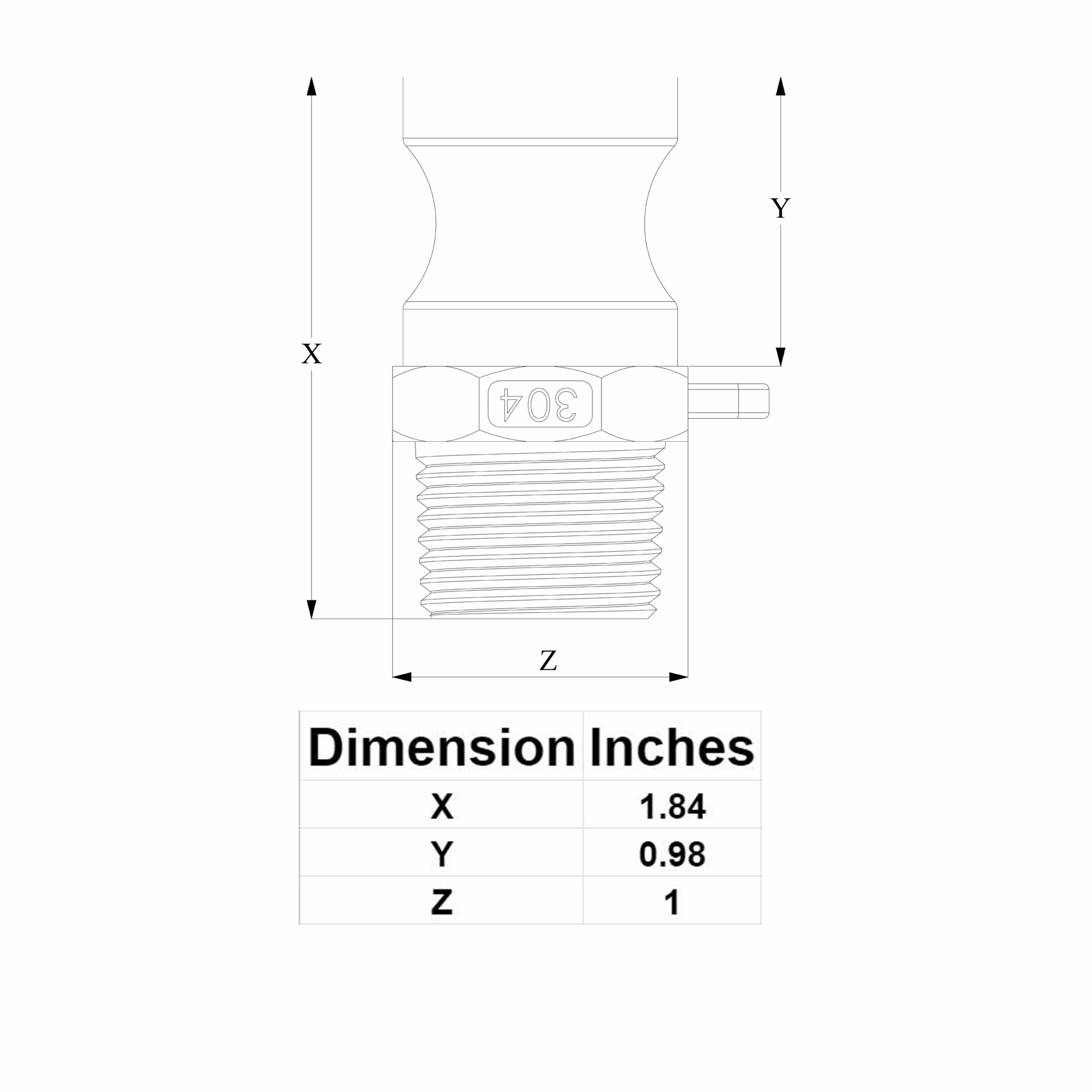

This is a stainless steel adapter with Male Camlock fitting on one side and 1/2″ Male NPT threads on the other. The cam lock type of coupling is a simple and economic way to make and break connections. This makes it a popular choice in beverages and also in the draft beer dispensing systems.

Type F cam is a male adapter with a male thread. The male adapter can be used with the female coupler of identical size.

The high-quality Stainless Steel Camlock Adapter Type F makes a secure and leak-free hose attachment. Always use it with a rubber gasket also.

Feature:

• Made of Stainless Steel
• Have a male adapter with male thread
• Typically used with Type B, C, D, and dust cap fitting.
• Quickly connect or disconnect.

How to Connect Camlock Fitting

1. Pull the female coupler lever above the cam handle
2. Slide the adaptor into the coupler with normal hand pressure
3. Close the coupler by pressing down the levers. To create a connection, it will lock the adaptor when the levers are closed

How to Disconnect Camlock Fitting

1. Depressurize the connection
2. Pull back the locking lever while rotating the handle away from the coupler’s body
3. Remove the adapter
4. Close the coupler by rotating the handle towards the coupler’s body. When the coupler is not in use, lock it to prevent possible damage.
