Counter Top Frothing Pitcher Rinser/Glass Rinser SS 304
Price range: $128.23 through $131.56
Same Day Shipping
Order before 2:00 pm EST (M-F)
Keep your beverage station clean and efficient with the 7.32″ × 6.85″ × 4.54″ Counter Top Frothing Pitcher Rinser / Glass Rinser. Manufactured from 304 stainless steel, this NSF-certified rinser delivers a 1.9 GPM flow rate at 60 PSI for fast rinsing of milk pitchers, glasses, blender jars, and other beverage containers. Its countertop design installs without cutting the countertop, making it an excellent choice for commercial beverage stations.
- Details
- Features
- Specifications
- Replacement Parts
- Installation Instruction

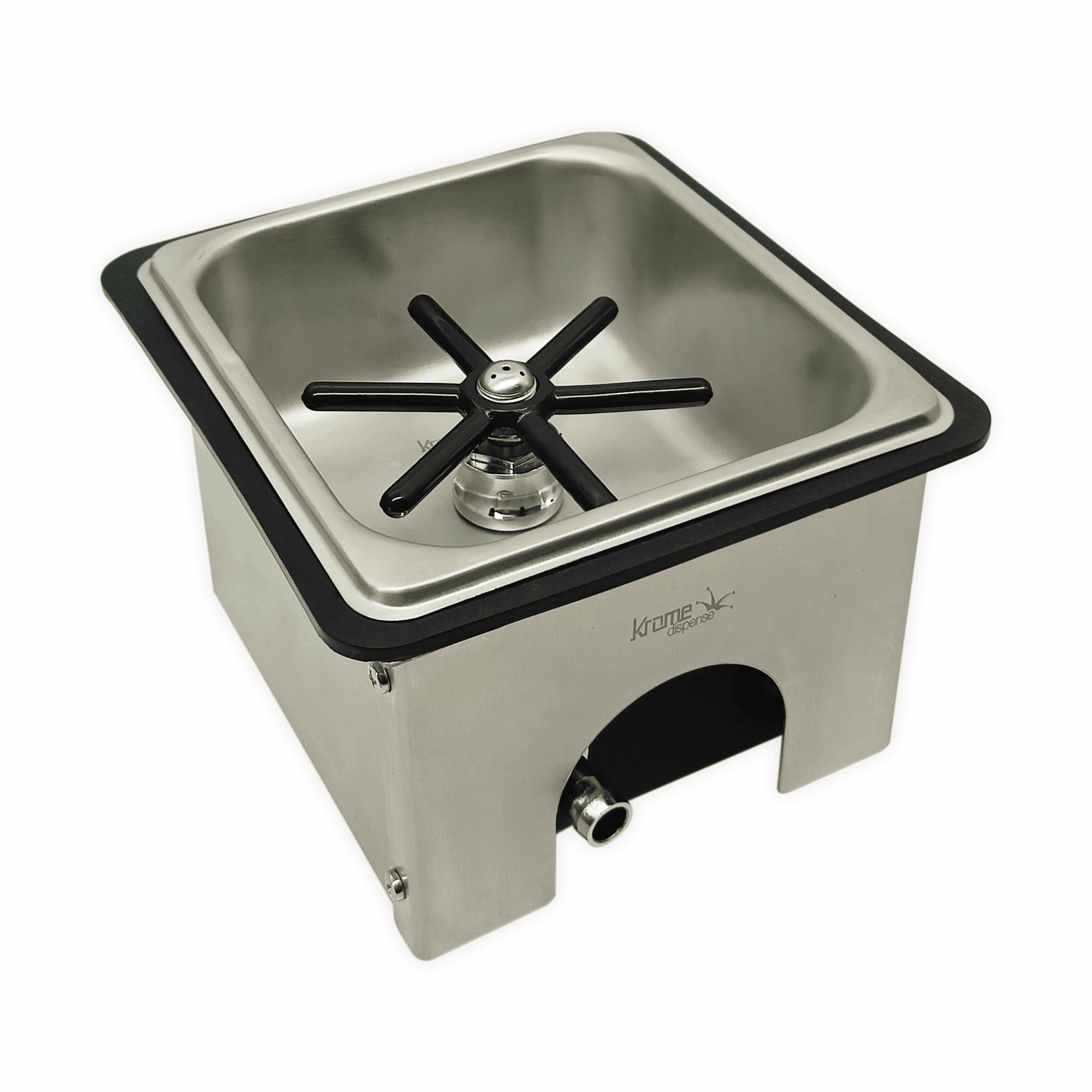

7.32″ x 6.85″ x 4.54″ Counter Top Frothing Pitcher Rinser/Glass Rinser- C334
Busy cafés, coffee shops, and beverage stations rely on clean equipment to deliver consistent drink quality. The 7.32″ × 6.85″ × 4.54″ Counter Top Frothing Pitcher Rinser / Glass Rinser helps staff rinse beverage containers quickly, reducing cleaning time between orders and keeping service moving during peak hours.

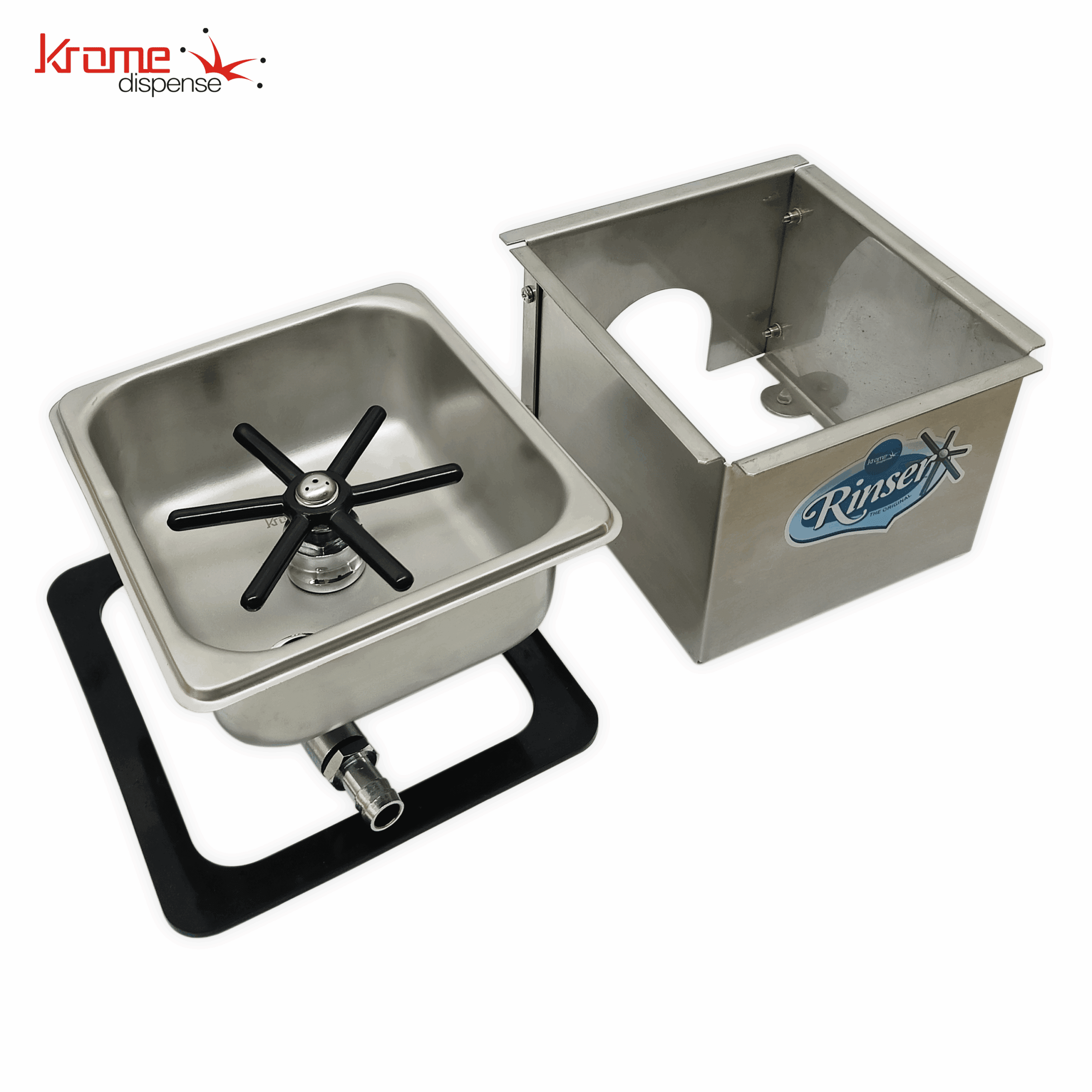

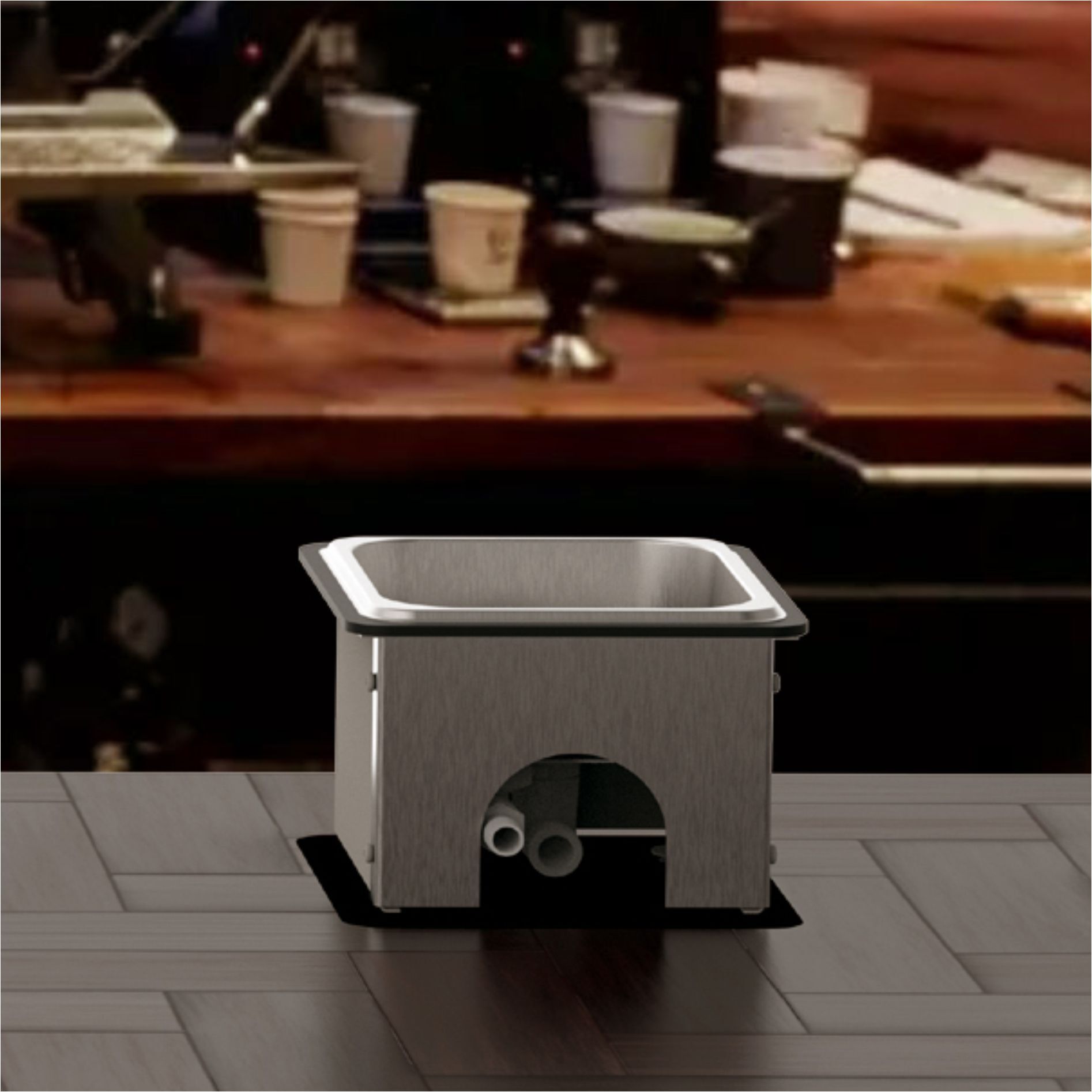

Manufactured from 304 stainless steel, this commercial rinser resists corrosion, handles daily use, and cleans easily. Its compact countertop design fits neatly beside espresso machines, coffee brewers, and beverage dispensers without requiring a countertop cutout, making installation simple for new or existing workstations.
The rinser delivers a flow rate of 1.9 GPM at 60 PSI, creating a powerful spray that removes milk residue, coffee oils, foam, and beverage deposits from pitchers, glassware, blender jars, and other reusable containers. A simple downward press activates the spray, allowing staff to prepare the next drink with minimal interruption.

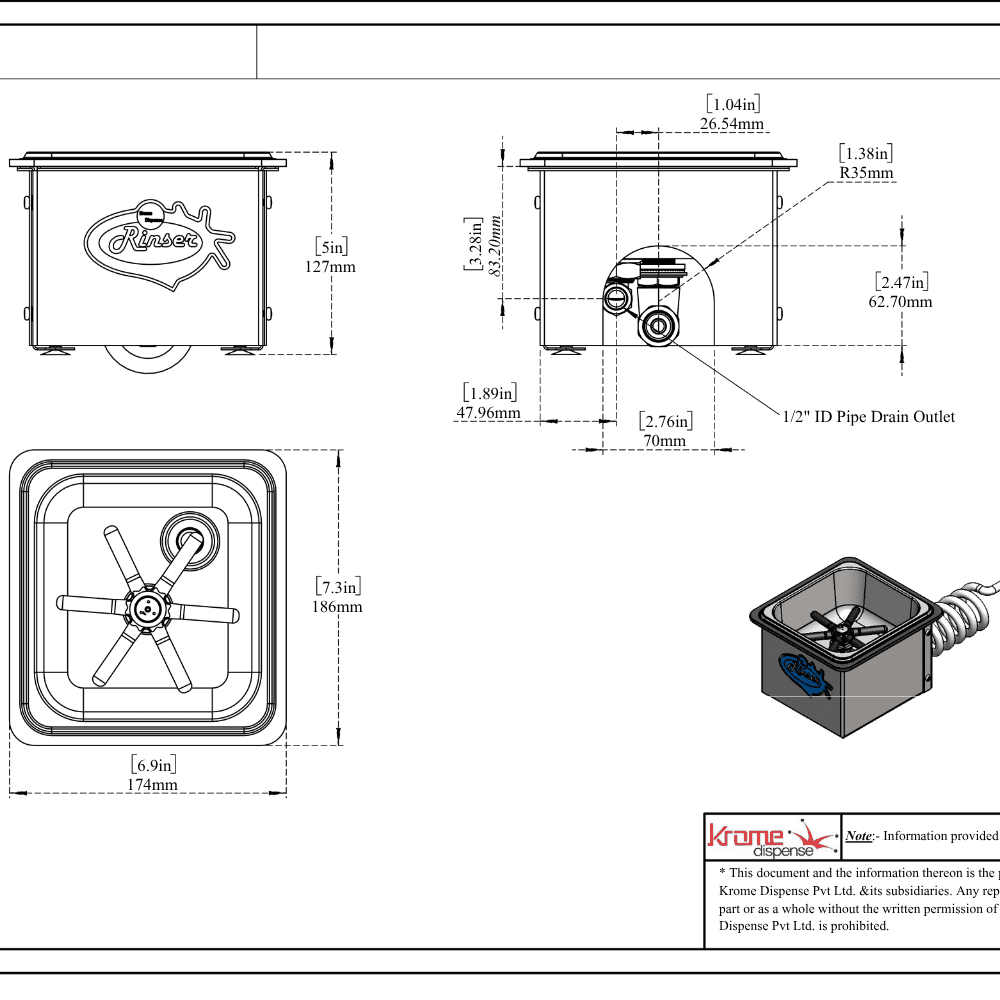

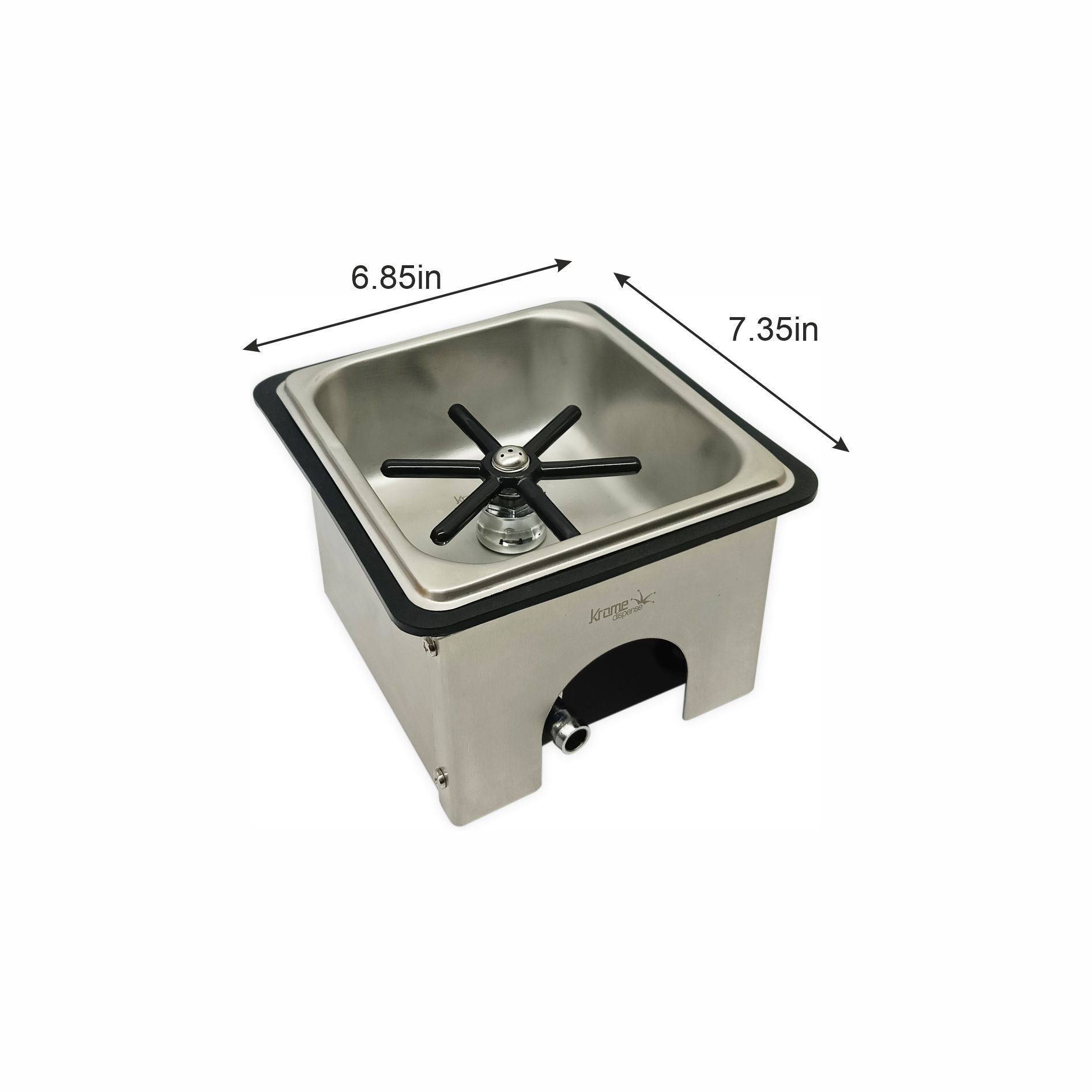

With dimensions of 7.32″ (L) × 6.85″ (W) × 4.54″ (H), this unit provides reliable cleaning performance while occupying minimal counter space. The included 1/2″ BSP connector with a 3/8″ OD × 5 ft hose simplifies installation, and the NSF certification confirms that the rinser meets commercial foodservice standards.
Whether you operate a café, coffee shop, restaurant, juice bar, or commercial kitchen, this countertop rinser supports faster workflow, better hygiene, and efficient beverage preparation.
Benefits
- Rinses containers in seconds
- Reduces manual cleaning during busy service
- Keeps beverage stations clean and organized
- Improves workflow for baristas and beverage staff
- Saves valuable countertop space
- Built for continuous commercial use
- Easy to install and maintain
Ideal Applications
- Coffee Shops
- Cafés
- Restaurants
- Juice Bars
- Smoothie Bars
- Hotels
- Bars & Pubs
- Commercial Kitchens
- Espresso Bars
- Beverage Stations
We have more options in Glass Rinsers. You can check the Below links.
No. Its countertop design installs on an existing work surface with water and drain connections.
The rinser delivers 1.9 GPM at 60 PSI for fast and efficient cleaning.
It rinses milk pitchers, glassware, blender jars, coffee jugs, cocktail shakers, and other reusable beverage containers.
Downloads

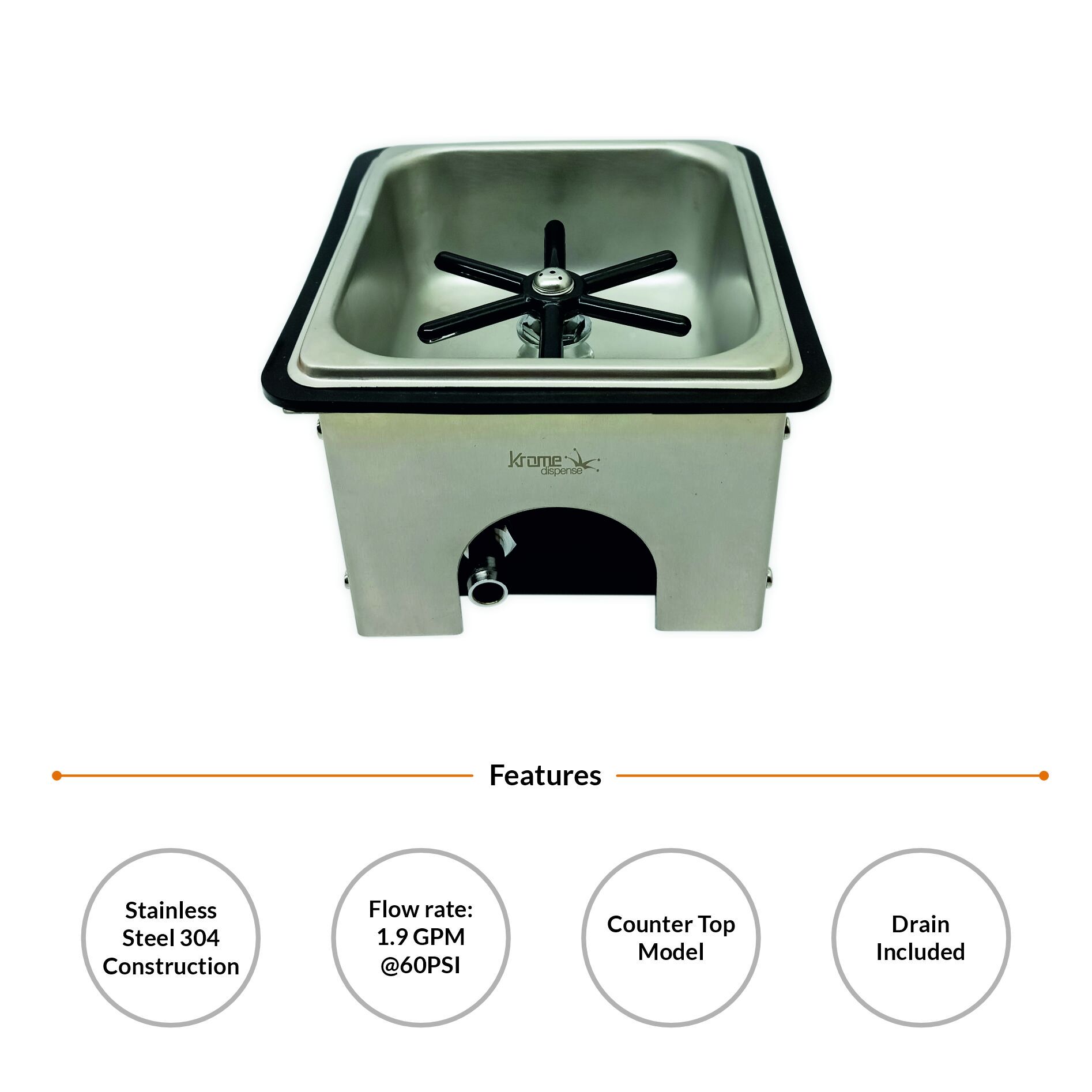

- Premium 304 stainless steel construction
- Countertop installation without countertop cutting
- 1.9 GPM flow rate at 60 PSI
- High-pressure spray disc for fast rinsing
- Compact footprint: 7.32″ × 6.85″ × 4.54″
- NSF Certified (Rinser Only)

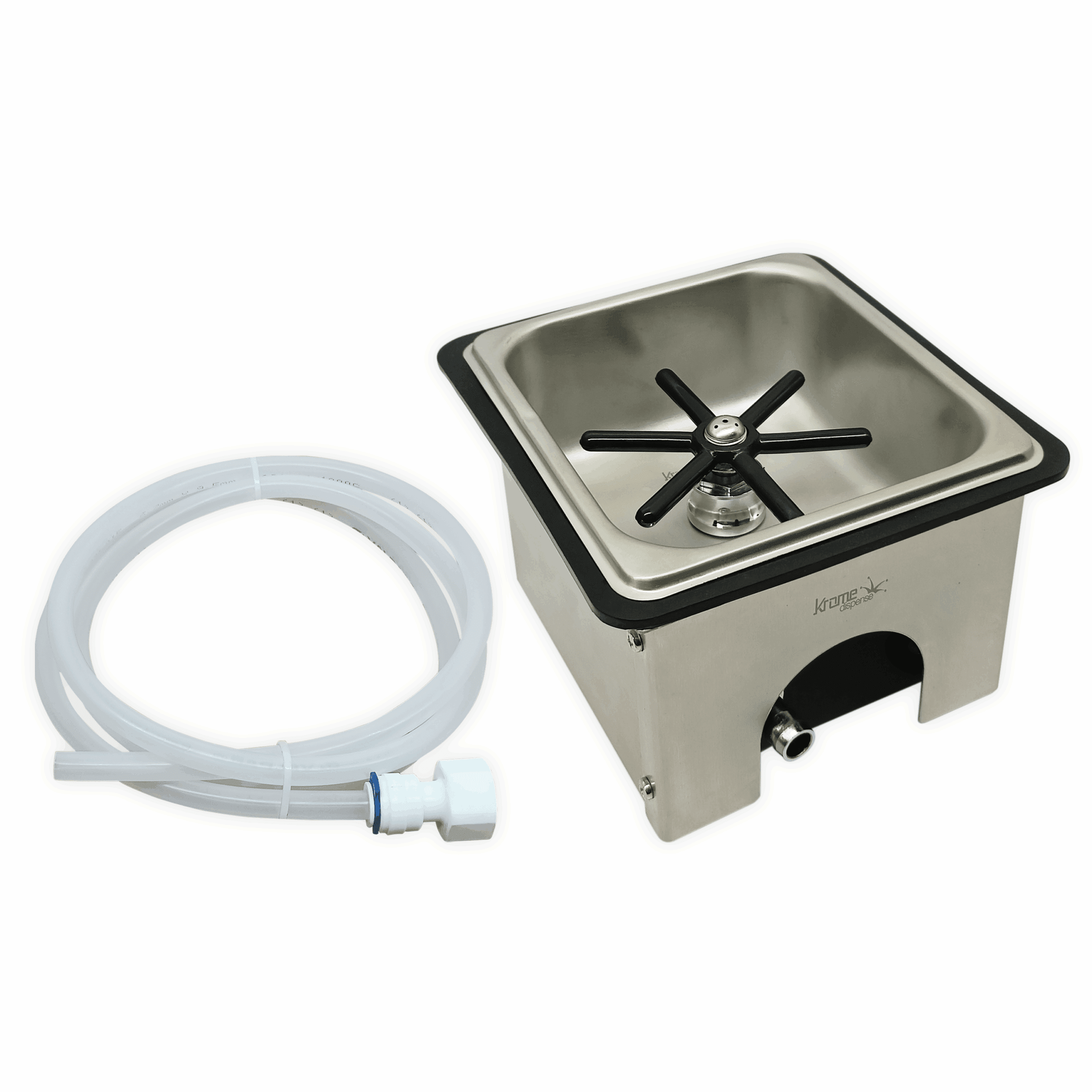

- Includes 1/2″ BSP connector with 3/8″ OD × 5 ft hose
- Brushed stainless steel finish
- Water-operated design
- No electricity required
| Product Type | Counter Top Frothing Pitcher Rinser / Glass Rinser |
| Material | Stainless Steel 304 |
| Finish | Brushed |
| length | 7.32 Inch |
| Width | 6.85 Inch |
| Height | 4.54 Inch |
| FLOW RATE | 1.9 GPM @ 60 PSI |
| Suitable for | Any espresso |
| Shape | Square |
| Standard Packing | 10 |
| Approval | NSF Certified (Rinser Only) |
| Installation | Counter Top |
| Water Connection | 3/8" Push-In Fitting |
| Electricity Required | Not Required |
| Certification | NSF Certified (Rinser Only) |
Replacement Parts
| Part # | Description | Price | ||||
|---|---|---|---|---|---|---|
| 1 |
|

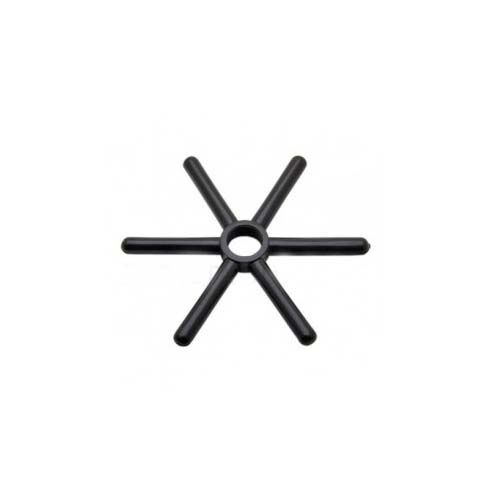

C334.04 | Replacement Plastic Rinser Disk | $7.54 | In Stock | |
| 2 |
|
C334.13 | Pitcher Rinser Spray Assembly-NSF Certified-C334.13 | $38.92 | In Stock | |
| 3 |
|
C060.04 | Stainless Steel Drain Assembly for Sinks | $28.00 | In Stock | |
| 4 |
|
C072 | Plastic Quick Connect 3/8″JG x 5/8″ BSP Female Adapter | $4.94 | In Stock | |
| 5 |
|
C029 | 1/2″ BSP Connector With 3/8″ OD X 5 Feet Hose – PP Pipe Assembly | $13.27 | In Stock | |
| 6 |
|
C334.07 | 7.32″ X 6.85″ Hush Gasket – Small | In Stock |
Installation Instructions
Rinser Water Inlet Installation Instructions
- Always check with local plumbing codes before Installation
- For Use with Regular or cold water supply only, Hot water is not recommended to use with rinser
- Install in-line water regulator set at 15 PSI from the public water supply, no more than 15 Psi
- Install an in-line one-way check valve on water supply this will prevent pressure drop which can cause leakage
- Install in-line shut-off for the rinser system from the water supply, this must be turned off if not in use for extended periods such as off days or night time!
- Install a shut-off for the water supply if the line is not hard plumbed into the system.
