28″ X 8″ Surface Mount Drip Tray With Rinser – Brushed Finish – Two Side Cut-Out
$161.89
In stock (can be backordered)
Same Day Shipping
Order before 2:00 pm EST (M-F)
- Details
- Features
- Specifications
- Installation Instruction

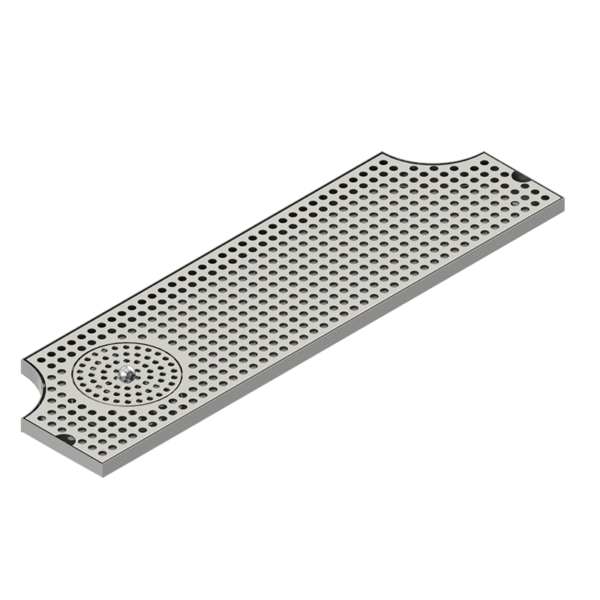

28″ X 8″ Surface Mount Drip Tray With Rinser – Brushed Finish – Two Side Cut-Out- C4028
28″ X 8″ Surface Mount Drip Tray With Rinser – Brushed Finish – Two Side Cut-Out is Draft beer dispensing surface drip tray with two sides cut-outs. Put it underneath the faucet to catch leaks and overflows. Includes a drain assembly to dispose of spent water. You may use a product like the Surface Mount Drip Tray With Rinser-Brushed Finish to maintain your bar area neat and tidy. This Beer Drip Tray includes a detachable grill for simple cleaning and gathers any drips or spills from your beer taps.
Before pouring beer into your glasses, you may quickly and conveniently rinse them with this product that included a rinser. The rinser is a little nozzle that you hold your glass up against to start spraying water and stop when you let go. You can conserve water, lessen froth, and enhance the flavor of your beer with the aid of a rinser. This drip tray is constructed from sturdy, corrosion-resistant 16 gauge stainless steel. For safety and aesthetic purposes, it features welded corners and has a smooth surface.
The package includes all the required parts, including a hose, a water inlet connector, and installation instructions. A supply of ordinary or cold water, a water regulator set at 15 PSI, a one-way check valve, and a shut-off valve for the rinser system are all necessary for the product to function. Since warm glasses increase foaming, it’s a good idea to use our NSF-approved side rinser before pouring.
Please Note: It is recommended that you use a Pressure Limiting Valve (PLV) when connecting to a mains water line.
- A brushed stainless finish is available.
- Drip trays with two sides cut off and a rinser.
- This bar top drip pan is made of sturdy 16 gauge stainless steel.
- Grill that is removable for simple manual cleaning.
- Before pouring, rinse with cold water. Better pours from wet glass than from a dry glass

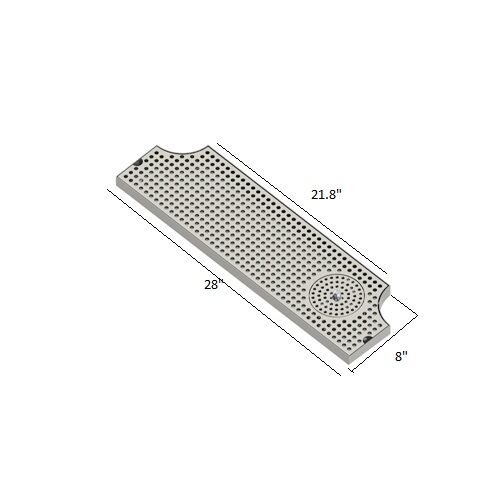

| length | 28" |
| Width | 8" |
| Thickness | 16 gauge |
| Type | With Drain |
| Material | Stainless Steel |
| Finish | Brushed |
| Mounting system | Surface Mount |
| Approvals | NSF Certified (Rinser Only) |
Installation Instructions
Rinser Water Inlet Installation Instructions
- Always check with local plumbing codes before Installation
- For Use with Regular or cold water supply only, Hot water is not recommended to use with rinser
- Install in-line water regulator set at 15 PSI from the public water supply, no more than 15 Psi
- Install an in-line one-way check valve on water supply this will prevent pressure drop which can cause leakage
- Install in-line shut-off for the rinser system from the water supply, this must be turned off if not in use for extended periods such as off days or night time!
- Install a shut-off for the water supply if the line is not hard plumbed into the system.
