Disconnect In Gas Ball Lock, Out Liquid Ball Lock With MFL And 1/4″ Barbed

Disconnect In Gas Ball Lock, Out Liquid Ball Lock With MFL And 1/4″ Barbed

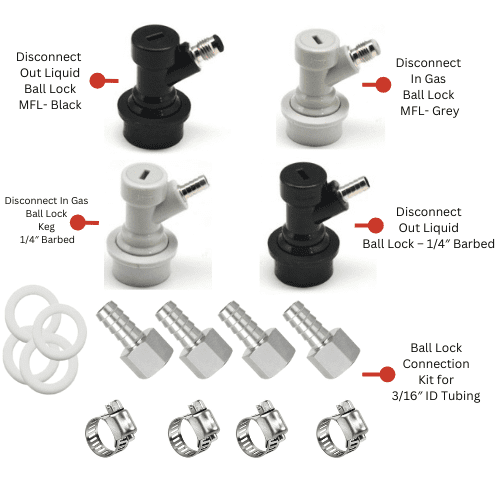

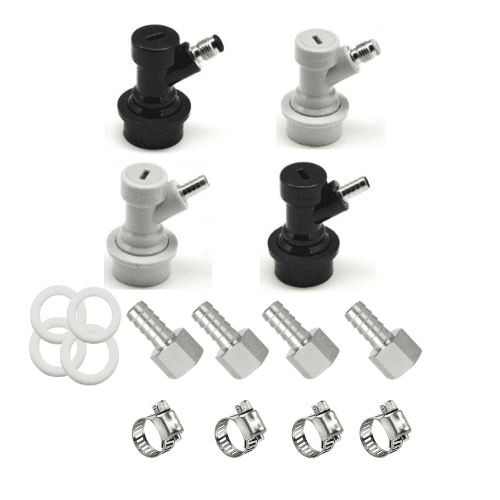

Bar object is offering a complete set of Disconnect In Gas Ball Lock, Out Liquid Ball Lock With MFL And 1/4″ Barbed kit which is very helpful for Bars, Restaurants and more. This Kit Includes

Disconnect In Gas Ball Lock MFL- Grey, Disconnect Out Liquid Ball Lock MFL- Black, Disconnect In Gas Ball Lock Keg 1/4″ Barbed, Disconnect Out Liquid Ball Lock – 1/4″ Barbed, Ball Lock Connection Kit for 3/16″ ID Tubing which described one by one below.

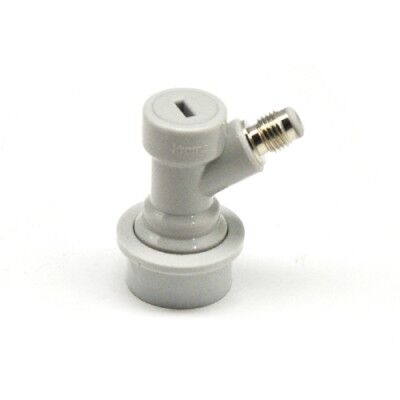

Disconnect In Gas Ball Lock MFL- Grey(C6553)

Both the Pin lock and Ball lock varieties of Cornelius kegs are very helpful to amateur brewers. The high-quality design of this grey, gas-in fast disconnect ensures a strong seal that won’t leak gas when in use. It also includes a barb for attaching to a beverage line.

The lines may be easily disassembled for cleaning thanks to this Threaded connection. These kegs have separate connections for gas and beer. This Ball lock Disconnect for Gas fits the gas inlet nicely. The gas line is complete once a suitable gas pipe connects to the 1/4′′ barbed end. perfectly fits all kegs with Cornelius locks.

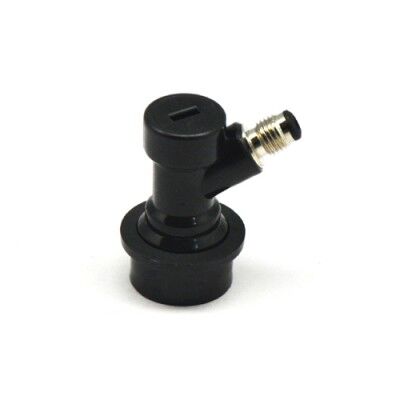

Disconnect Out Liquid Ball Lock MFL- Black (C6552)

Soda kegs with a ball-lock lid have separate gas inlets and liquid outputs on the cap itself.

They make both serving and storing homebrew incredibly easy. This Black Liquid Ball Lock-Liquid Out Disconnect is made exclusively for the liquid exit. The beer line is complete once a suitable beer pipe fits onto the 1/4′′ threaded end. The black base and top of this ball lock disconnect indicate that it is especially for the beer side. consists of stainless steel for the barb and thread. Connect directly to the pipe using stainless steel screw clamps.

Disconnect In Gas Ball Lock Keg 1/4″ Barbed (C6544)

Ball-lock kegs, often known as soda kegs, have a gas intake and liquid exit on the lid itself. The gas inlet is ideal for this 1/4″ barbed disconnect-in gas ball lock.

Attach a suitable gas pipe to the 1/4′′ barb end to complete the gas line. This only applies to the gas side, where the gray base and top are readily visible. When the gas is in use, it cannot leak. Stainless steel makes use of to make the barbs.
Fits all Cornelius lock-style kegs perfectly. The beer keg disconnects internal check valve permits gas into the keg while preventing beer from spilling out.

Disconnect Out Liquid Ball Lock – 1/4″ Barbed (C6543)

Homebrewers frequently use ball lock kegs, sometimes known as soda kegs, to hold their batch.

On the lid itself, these kegs contain separate inlets for gas and liquid. This liquid out ball lock disconnect is designed specifically for the liquid outlet. The beer line is complete once a suitable beer hose connects to the 1/4′′ barb end. This Ball Lock Disconnect is solely for the Beer side, as indicated by the Black base and top.
perfectly fits all kegs with ball locks made by Cornelius.

Ball Lock Connection Kit for 3/16″ ID Tubing (C6554)

In this Ball Lock Connection Kit includes SS Worm Clamp, Nylon Washer, and Flare Swivel Nut. The worm drive screw clamp creates a tight seal between your beer hose and barb fittings. Use this Interlocked Worm Gear Hose Clamp with beer tubing 3/16″ – 5/16″ ID Vinyl hoses.
The clamp is made of stainless steel, which is corrosion-resistant and rust-free.
Make sure the gas and beer lines are secure and leak-free. This sealing ring should be used in conjunction with the flare ends of the gas and liquid disconnects.Nylon gaskets are both flexible and long-lasting.
Gas distributors are necessary beer dispensing components. They’re useful for dispensing from several kegs with a single CO2 cylinder. And we have replacement parts to easily repair worn-out or broken items.
