D-Type Keg Coupler: What It Is, Which Beers Use It & How to Use It

If you have ever tapped a keg of Budweiser, Coors, Miller, or almost any North American craft beer, you have already used a D-type keg coupler — probably without knowing its name. It is the single most common keg coupler in the world, and if you are setting up a draft beer system in a bar, restaurant, or home kegerator, there is a very good chance this is the one you need.

This guide covers everything about the D-type coupler: what it is, how it works, which beer brands use it, how to attach it correctly, and how to maintain it so you always get a clean, perfect pour.

                             Keg Coupler Guide here: ‘Not sure which coupler you need? Read our complete Keg Coupler Guide first.’

1. What Is a D-Type Keg Coupler?

A D-type keg coupler — also called an American Sankey coupler, D-system coupler, or US Sankey coupler — is the valve connector that links a beer keg to your draft system. When you attach it to the keg and press the handle down, two things happen simultaneously: pressurized CO₂ (or nitrogen) enters the keg through the gas inlet, and beer is pushed out through the liquid outlet toward your tap.

The “D” designation refers to the shape and design of the keg valve it fits. All D-system kegs have a standardized flat-top valve with two depressions on either side, which the coupler’s two lugs lock into when you turn it clockwise. This bayonet-style locking mechanism is what distinguishes the D-type from other coupler systems like the S-type (European), A-type (German), or U-type (Guinness).

Key parts of a D-type coupler

• Body — the main housing that threads or locks onto the keg valve
• Probe — a stainless steel tube that punctures into the keg to allow liquid flow
• Handle — pulls down to engage the probe and open the keg valve
• Gas inlet — side port where your CO₂ gas line connects (typically 3/8″ barb)
• Liquid outlet — top port where your beer line connects
• Pressure relief valve (PRV) — a safety valve that releases excess pressure automatically
• O-rings and seal washers — rubber seals that prevent gas and liquid leaks



⭐ Featured Product: Krome D System Wine Keg Coupler (SS304 Body + 316 Probe, NSF Certified) — View on Bar Objects →

2. History: Why Are There So Many Coupler Types?

A question people often ask when they first discover that there are six different coupler systems is: why? Why couldn’t the whole world agree on one standard?

The short answer is that each major brewing region developed its own keg valve design independently, long before international beer trade became common. American breweries settled on what we now call the D-system (Sankey) in the mid-20th century. European, British, and Irish breweries each went their own way. By the time imported beers became globally popular, every major brewery had already invested heavily in its own keg infrastructure and had no reason to switch.

The D-type became dominant in North America and is now the de facto global standard for the highest-volume commercial beers. If you operate a bar or restaurant in the United States or Canada, a D-type coupler will cover the vast majority of the beers you serve.

3. Which Beer Brands Use a D-Type Coupler?

The D-system (American Sankey) coupler is compatible with virtually all major North American beer brands and a growing number of international brands brewed or distributed domestically. Here is a comprehensive list:

Major domestic beer brands

Brand	Style	Notes
Budweiser	American Lager	Most popular D-system keg globally
Bud Light	Light Lager
Coors	American Lager
Coors Light	Light Lager
Miller Lite	Light Lager
Miller High Life	American Lager
Miller Genuine Draft	American Lager
Michelob Ultra	Light Lager
Busch / Busch Light	American Lager
Corona	Mexican Lager	US market kegs use D-system
Dos Equis	Mexican Lager	US market kegs use D-system
Modelo Especial	Mexican Lager	US market kegs use D-system
Yuengling Lager	American Amber Lager	Oldest US brewery
PBR (Pabst Blue Ribbon)	American Lager
Samuel Adams Boston Lager	Boston Lager
Blue Moon	Wheat Ale
Sierra Nevada Pale Ale	Pale Ale
Lagunitas IPA	India Pale Ale
Dogfish Head 60 Min IPA	India Pale Ale
Brooklyn Lager	Vienna Lager
Molson Canadian	Canadian Lager
Labatt Blue	Canadian Lager
Alexander Keith’s IPA	India Pale Ale	Canadian brand

Most craft beers brewed in North America also use the D-system, including the majority of regional and local craft breweries. When in doubt, ask your beer distributor — or look for the standard flat-top keg valve with two side depressions.

4. D-Type vs. Other Coupler Systems: How to Tell the Difference

If you are unsure whether your keg needs a D-type coupler, a quick visual inspection of the keg valve is all it takes. Here is how the D-system compares to the other major coupler types:

Coupler Type	Also Known As	Valve Shape	Common Brands
D-Type	American Sankey / US Sankey	Flat top, two oval depressions on sides	Budweiser, Coors, Miller, most NA craft
S-Type	European Sankey	Similar to D but longer probe slot	Heineken, Amstel, Stella Artois, Beck’s
U-Type	Guinness / Irish	Single round valve, no side lugs	Guinness, Harp, Smithwick’s
A-Type	German Slider	Slides over top, no twist lock	Paulaner, Warsteiner, Hoegaarden
G-Type	Grundy / British	Triangle-shaped valve stem	Boddington’s, Grolsch, Bass (older)
M-Type	German Pin Slider	Similar to A-type, pin mechanism	Schneider Weisse, Einbecker

Pro Tip: If you force a coupler onto the wrong keg valve, you risk damaging the valve, causing leaks, or getting a face full of beer. Always verify the keg system before tapping.

See our U-Type Coupler Guide.

5. How to Tap a Keg with a D-Type Coupler (Step-by-Step)

Tapping a keg correctly is straightforward once you understand the process. Follow these steps every time for a safe, leak-free connection:

What you need

• D-type (American Sankey) keg coupler
• CO₂ gas tank with regulator (set to 10–14 PSI for most lagers)
• Beer line connected to the liquid outlet
• Gas line connected to the gas inlet



Step-by-step tapping process

1. Make sure the coupler handle is in the UP (off) position before you start. This prevents premature beer flow.
2. Remove the dust cap from the keg valve by hand. Set it aside — you will need it when you switch kegs.
3. Inspect the coupler probe and the keg valve for debris or damage. A clean connection prevents contamination.
4. Align the two lugs on the coupler body with the two oval slots on the keg valve. The coupler should drop down slightly when aligned correctly.
5. Twist the coupler body clockwise (about a quarter turn) until it locks firmly into place. You should feel a distinct click or resistance when it seats.
6. Check that your CO₂ gas line and beer line are both connected to the coupler and clamped securely.
7. Press the handle DOWN firmly to the engaged (on) position. This pushes the probe into the keg, opening the internal valve and allowing gas in and beer out.
8. Check all connections for leaks by listening for hissing. Tighten any loose hose clamps if needed.
9. Open your tap faucet briefly to allow foam to purge, then pour your first pint.

To detach the coupler

1. Close the gas supply at the regulator.
2. Release pressure using the pressure relief valve (small ring or tab on the coupler body — pull gently).
3. Lift the coupler handle back UP to the off position.
4. Twist the coupler body counter-clockwise and lift it off the keg valve.
5. Replace the dust cap on the keg valve.



Pro Tip: Always relieve pressure before removing a coupler. Skipping this step can result in a sudden spray of beer or CO₂ gas.

6. D-Type Coupler Materials: What to Look For

Not all D-type couplers are equal. The material of the body and especially the probe makes a significant difference in performance, longevity, and — critically — what beverages you can safely dispense through it.

Component	Chrome-Plated Brass	SS304 Stainless Steel	SS316 Stainless Steel
Body	Budget option, common in homebrewer kits	Commercial grade, corrosion-resistant	Overkill for body; SS304 sufficient
Probe	Not food-safe for acidic beverages	Good for beer; not ideal for wine/cider	Required for wine, cider, acidic beverages
Durability	Lower — brass corrodes with acids	High — handles daily commercial use	Highest — resists chloride corrosion
NSF Certified?	Usually not	Yes (on quality models)	Yes
Best For	Homebrew / occasional use	Bars, restaurants, craft beer	Wineries, cideries, specialty beverage



For commercial environments — bars, restaurants, breweries — an NSF-certified coupler with a stainless steel body (SS304) is the minimum standard. For wine and cider dispensing, the probe must be SS316 stainless steel, as the higher acidity of these beverages corrodes standard brass or SS304 probes over time, which affects flavor and food safety.



⭐ Featured Product: Krome D System Wine Keg Coupler (SS304 Body + 316 Probe, NSF Certified) — View on Bar Objects →

7. Gas Types: CO₂ vs. Nitrogen with D-Type Couplers

Most D-type couplers are compatible with CO₂ gas, which is the standard for the vast majority of lagers, ales, and craft beers. However, it is worth understanding when nitrogen comes into play.

Gas Type	Best For	Pressure (typical)	D-Type Compatible?
CO₂ only	Lagers, ales, IPAs, most craft beers	10–14 PSI	Yes
Nitrogen only	Stout-style beers (Guinness-style)	25–40 PSI	Yes, but requires stout faucet
CO₂ / N₂ blend (Nitro)	Specialty beers, ciders, cold brew coffee	10–25 PSI depending on ratio	Yes



The D-type coupler itself is gas-agnostic — it will pass through whatever gas you connect to it. What changes is the regulator, gas blend, and faucet. If you are serving a nitrogen-style beer through a D-system keg, you need a stout faucet (with a restrictor plate) to achieve the characteristic creamy head.

8. Cleaning and Maintenance

A D-type coupler that is not cleaned regularly becomes a breeding ground for bacteria, yeast, and beer stone — all of which affect the taste of your beer and can eventually cause health code violations in a commercial setting. The industry standard is to clean beer lines and couplers every two weeks.

Regular cleaning (every 2 weeks)

1. Disconnect the coupler from the keg and remove it from the beer line.
2. Flush the coupler body and probe with warm water to remove residual beer.
3. Run an approved beer line cleaning solution through the coupler body. Allow it to soak for the time specified on the cleaning product (usually 10–15 minutes).
4. Rinse thoroughly with clean water at least three times. Any cleaning chemical residue will ruin the flavor of your next pour.
5. Allow to air dry completely before reattaching.

Deep clean and inspection (every 3 months)

6. Fully disassemble the coupler (probe, O-rings, seal washer, check ball, PRV).
7. Soak all parts in beer line cleaner solution.
8. Inspect all O-rings and seals for cracks, swelling, or compression damage. Replace any that show wear.
9. Check the probe for pitting or corrosion (especially important if you use it for wine or cider).
10. Reassemble with food-grade lubricant on the O-rings.



Maintenance Calendar: Keep a log. Write the cleaning date on a piece of tape stuck to the coupler, or use a digital reminder. Consistent cleaning = consistent beer quality.



9. Troubleshooting Common D-Type Coupler Problems

Problem	Most Likely Cause	Fix
Beer won’t flow	Handle not fully engaged, or keg is empty	Push handle fully down; check keg weight
Foamy beer / over-carbonation	CO₂ pressure too high, or beer too warm	Reduce PSI to 10–12; check refrigeration temp (38–42°F)
Gas leak (hissing from coupler)	Worn O-ring or loose gas line connection	Replace body O-rings (C704.03X2); tighten hose clamp
Beer leak around probe	Probe seal washer damaged or misaligned	Replace probe seal washer (C703.02X100)
Coupler won’t lock onto keg	Wrong coupler type, or coupler not aligned with lugs	Verify it is a D-system keg; re-align lugs before twisting
Flat / under-carbonated beer	CO₂ pressure too low, or gas tank empty	Check CO₂ tank level; increase PSI to 12–14
Beer tastes off / sour	Coupler or lines not cleaned in >2 weeks	Run full beer line cleaning cycle immediately
PRV leaking	PRV valve spring worn out	Replace PRV (part C712.13)



When in Doubt: Most coupler problems come down to three things: worn seals, wrong pressure, or insufficient cleaning. Check those three first before calling a technician.

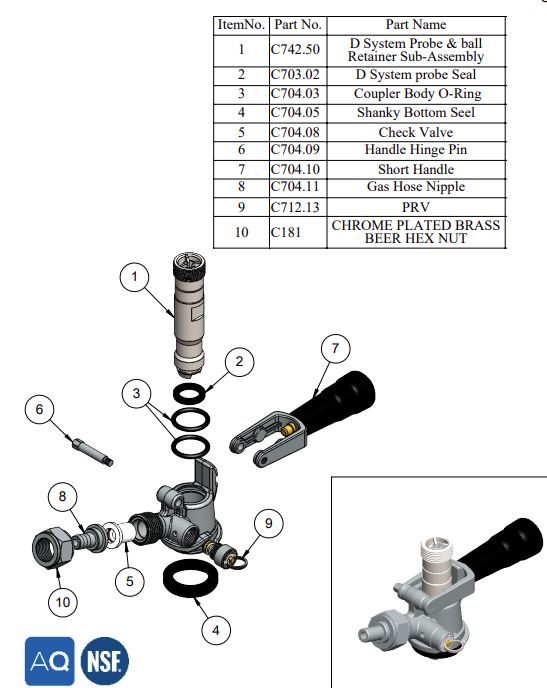

10. D-Type Coupler Replacement Parts

A quality stainless steel D-type coupler should last many years in commercial use — but the consumable parts (O-rings, seals, and washers) need periodic replacement. Keeping spares on hand means zero downtime when something wears out mid-service.

Part	Part Number	Replace When
Probe Seal Washer (100-pack)	C703.02X100	Every 6 months or when beer leaks from probe
Coupler Body O-Rings (2-pack)	C704.03X2	Every 6 months or when gas hisses from body
Sankey Bottom Seal Washer	C704.05	When keg connection leaks at base
Check Ball Retainer	C704.06X1	When beer flows backward / check valve fails
Plastic Check Ball	C704.07X1	When included in check ball kit replacement
Check Valve	C704.08	When gas or beer reverse-flows
Lever Handle Hinge Pin	C704.09X1	When handle feels loose or wobbly
Pull Handle	C704.10X1	When handle cracks or breaks
Gas Hose Nipple	C704.11X1	When gas connection drips or leaks
Pressure Relief Valve (PRV)	C712.13	When PRV drips constantly under normal pressure



All replacement parts listed above are available individually at BarObjects.com, so you only replace what is worn rather than buying a whole new coupler.



11. Best D-Type Coupler for Wine & Specialty Beverages

If you are dispensing wine, cider, kombucha, or any other acidic beverage from D-system kegs, you need a coupler with a 316-grade stainless steel probe specifically. Standard SS304 or chrome-plated brass probes are not designed to resist the corrosive effect of acidic beverages, and over time they can leach metallic compounds that affect flavor and food safety.

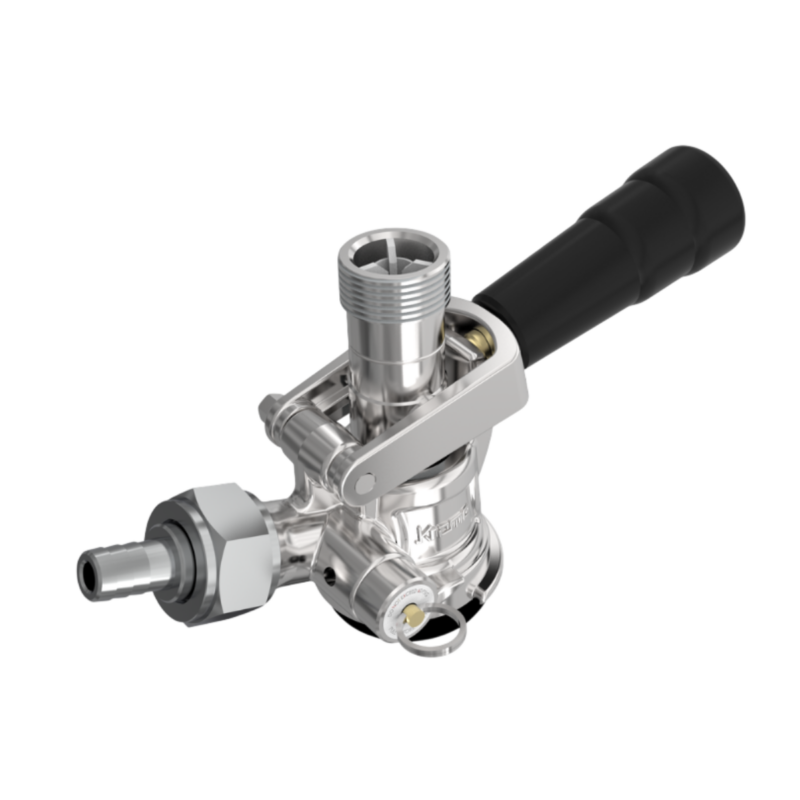

Krome D System Wine Keg Coupler — C742

The Krome D System Wine Keg Coupler (C742) from Bar Objects is built specifically for this use case. It features a SS304 stainless steel body paired with a SS316 stainless steel probe — the same grade used in marine and food-processing applications for maximum corrosion resistance against acids.



• SS304 stainless steel body — commercial durability, NSF certified
• SS316 stainless steel probe — resists acidic beverages (wine, cider, specialty drinks)
• Ergonomic pull-handle design — quick, secure keg engagement
• Integrated pressure relief valve (PRV) — built-in safety for commercial environments
• Gas inlet: 3/8″ O.D. barb (fits 5/16″ I.D. gas hose)
• Compatible with all D-system (American Sankey / US Sankey) keg valves
• NSF certified — meets commercial food service hygiene standards
• Designed for wineries, bars, restaurants, and beverage service operations



⭐ Featured Product: Krome D System Wine Keg Coupler (SS304 Body + 316 Probe, NSF Certified) — View on Bar Objects →



12. Frequently Asked Questions

Q: Is the D-type coupler the same as the American Sankey coupler?

Yes — D-type, D-system, American Sankey, and US Sankey all refer to the same coupler. The names are used interchangeably in the industry.



Q: Will a D-type coupler work on European beers like Heineken or Stella Artois?

No. Heineken, Stella Artois, Amstel, and most European lagers use an S-type (European Sankey) coupler, which has a longer probe. A D-type will not lock onto an S-system keg valve correctly. Forcing it risks damaging the valve.



Q: Can I use a D-type coupler for wine or cider?

Yes — but only if the probe is made from 316-grade stainless steel (not SS304 or chrome-plated brass). Standard probes will corrode when exposed to the acidity in wine and cider. The Krome C742 Wine Keg Coupler is specifically designed with an SS316 probe for this purpose.



Q: What PSI should I set for a D-type coupler?

For most lagers and ales, 10–14 PSI of CO₂ is the standard range. Higher carbonation beers (like some craft IPAs or wheat beers) may need up to 15–18 PSI. Set your regulator to the lower end first and adjust if the pour is too flat.



Q: How often should I clean a D-type coupler?

Every two weeks for commercial installations, per Brewers Association guidelines. For home kegerators used less frequently, clean thoroughly between every keg change. Use a dedicated beer line cleaning solution — warm water alone is not sufficient.



Q: What causes foam with a D-type coupler?

The three most common causes are: CO₂ pressure set too high, beer temperature too warm (should be 38–42°F), or dirty beer lines. Check all three before adjusting anything else.



Q: Do all D-type couplers fit all D-system kegs?

Yes — the D-system keg valve is standardized across North America. Any quality D-type coupler will fit any D-system keg regardless of brand, keg size (half barrel, quarter barrel, sixth barrel), or manufacturer.



13. Conclusion

The D-type coupler is the backbone of draft beer service in North America. If you are stocking a bar, running a restaurant, or building a home kegerator, it is almost certainly the coupler you need. Understanding the difference between body materials, knowing which beers it fits, and keeping up with cleaning and seal maintenance will ensure you always serve a perfect pint.

For commercial or winery/cidery applications, the additional investment in an SS316 probe and NSF-certified construction is not optional — it is the standard that protects your customers and your equipment.



⭐ Featured Product: Krome D System Wine Keg Coupler (SS304 Body + 316 Probe, NSF Certified) — View on Bar Objects →
